Current and past projects of Ed Joy Yacht Design

Ed Joy Design News

The latest events at Ed Joy Design

Introducing the Good Hope 65

Edwin Joy

Featuring a proven fully retractable keel and rudder design, simple systems and a bombproof aluminum hull, The Good Hope 65 will be equally at home exploring shallow rivers or sailing far offshore.


EVA gets wet

Edwin Joy

With the hull, deck and machinery completed by Jacobs Brothers and the interior built by the owners, Eva is the second Good Hope 56 to hit the waters of Cape Town in a month. Well done!

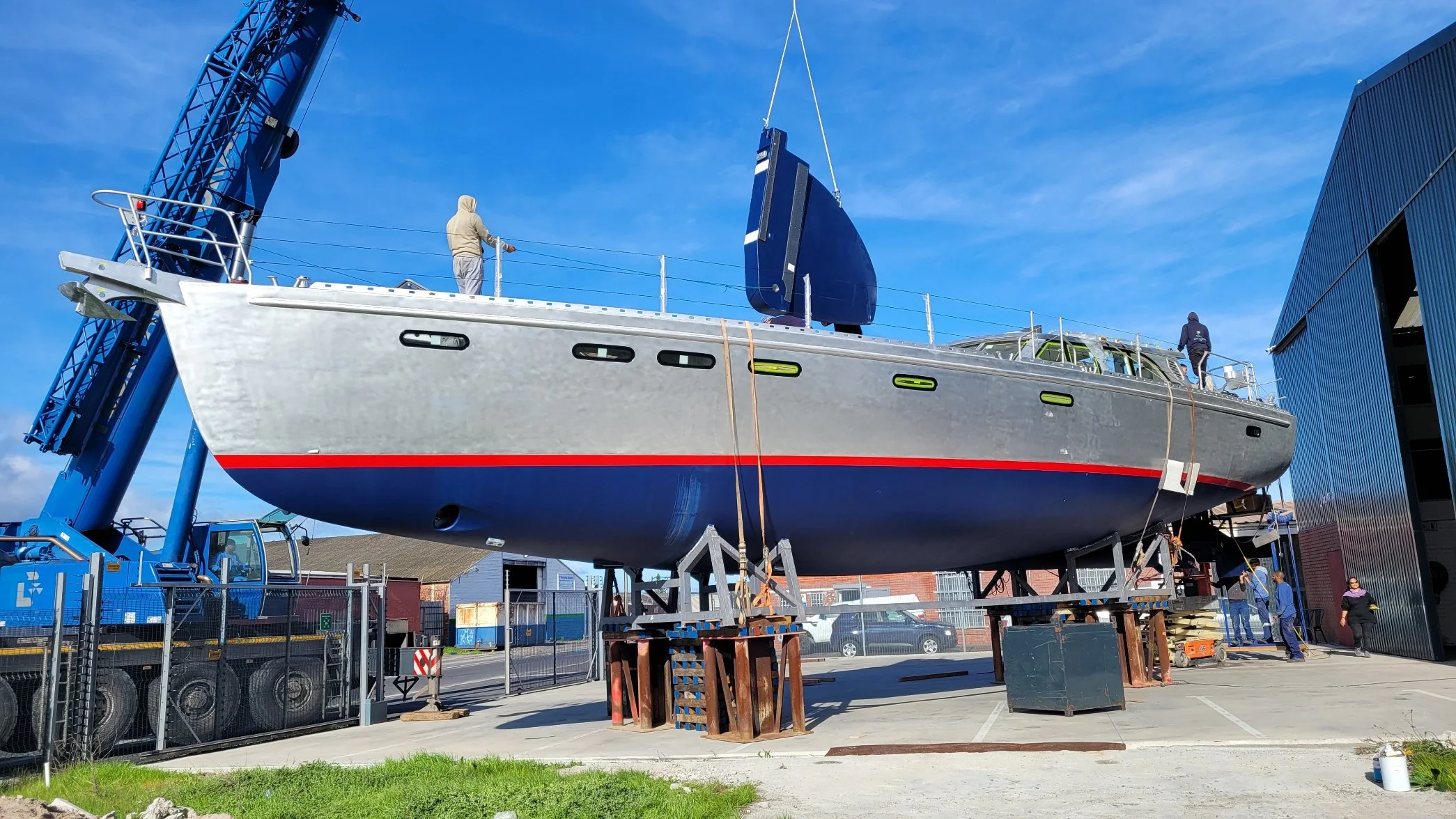

On the crane and ready to go

On the crane and ready to go

A pair of Good Hope 56’s. That’s Urchin in the background.

A pair of Good Hope 56’s. That’s Urchin in the background.

Launch day!

Edwin Joy

Jacobs Brothers has launched Urchin, the second Good Hope 56, in Cape Town. Sailing trials will commence in the next few weeks. She will be on display at the Cape Town International Boat Show October 14-16, 2016.

Headed for the water.

Headed for the water.

Installing the lifting keel.

Installing the lifting keel.

Floating perfectly on her lines.

Floating perfectly on her lines.

Rig is in - sailing soon.

Rig is in - sailing soon.

Looking forward into the galley. The bright interior motif is white paint with inset doors and lovely blonde countertops.

Looking forward into the galley. The bright interior motif is white paint with inset doors and lovely blonde countertops.

Master stateroom looking aft

Master stateroom looking aft

Dodger for RM1350

Edwin Joy

An owner of an RM1350 sailing yacht in Denmark asked us to design a hard dodger that would be functional, attaractive, and fit the style of his boat. He was quite happy with the the results.

RM Yachts was very helpful by providing us with a 3D computer model of the deck so we were able to provide the builder with precise patterns for construction. It is good to see such excellent customer service.

The dodger was built and installed by the craftsmen at Mathis Vaerft shipyard in Aalborg, Denmark.

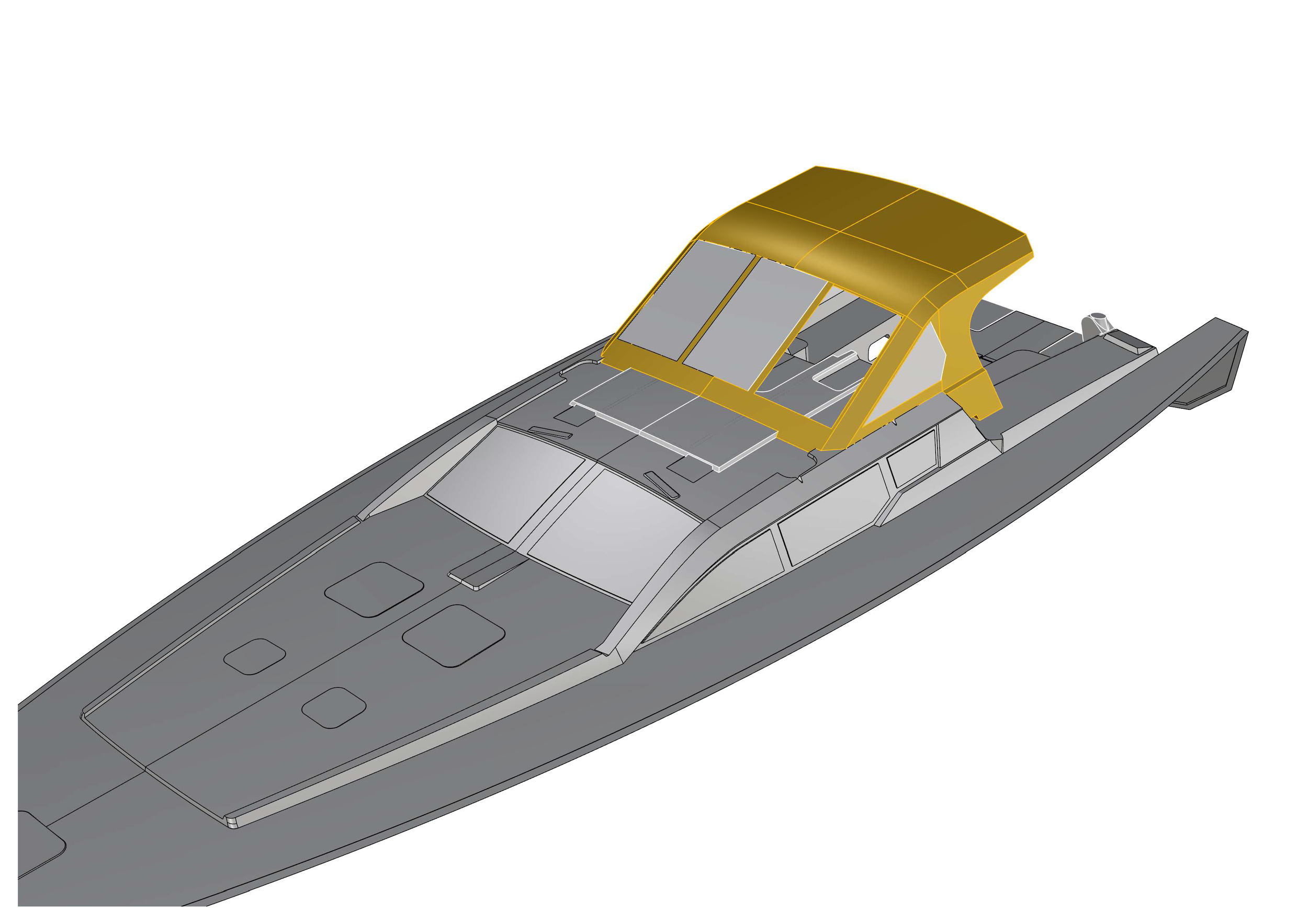

We were able to precisely model the dodger in 3D and connect it perfectly to the model generously provided by RM Yachts.

We were able to precisely model the dodger in 3D and connect it perfectly to the model generously provided by RM Yachts.

The 3D information was also very helpful to the client.

The 3D information was also very helpful to the client.

Under construction at Mathis Vaerft

Under construction at Mathis Vaerft

Completed work

Completed work

Care was taken to make sure the dodger follows the styling of the boat and looks like it was part of the original design.

Care was taken to make sure the dodger follows the styling of the boat and looks like it was part of the original design.

Drying out

Edwin Joy

Seal is shown here taking advantage of the versatility offered by her lifting keel and rudder to dry out with the ebbing tide, check the zincs and inspect the bottom, and sail off with the return of the tide.

More Good Hope 56 progress

Edwin Joy

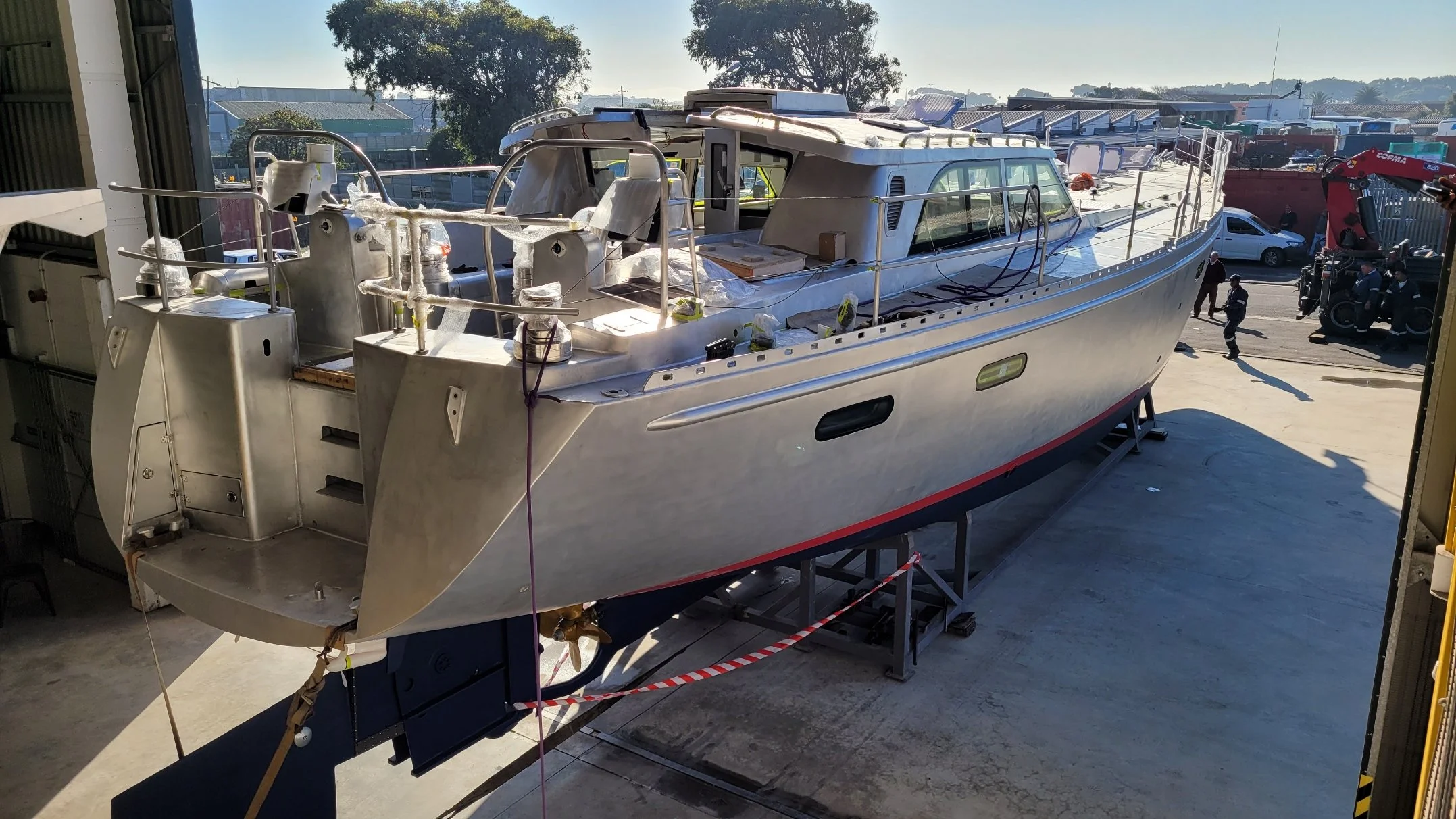

Jacobs Brothers are making great progress on the second Good Hope 56. The pictures show an organized project well under way.

In the galley looking forward. There is a large amount of storage with the upper cabinet mounted on the side of the keel case.

In the galley looking forward. There is a large amount of storage with the upper cabinet mounted on the side of the keel case.

The sturdy John Deere engine in place. High torque and low RPM make for a very efficient, reliable and long lasting propulsion system.

The sturdy John Deere engine in place. High torque and low RPM make for a very efficient, reliable and long lasting propulsion system.

The engine room is spacious with good access to the equipment – a rare feature on a boat this small.

The engine room is spacious with good access to the equipment – a rare feature on a boat this small.

Note the drip tray under the fuel filters.

Note the drip tray under the fuel filters.

The fresh water distribution manifold is easily accessible. Attention to detail in locating such mundane items will make the boat a joy to maintain. The value will accrue over the long term when regular maintenance on items is actually carried out due to ease of access to the parts.

The fresh water distribution manifold is easily accessible. Attention to detail in locating such mundane items will make the boat a joy to maintain. The value will accrue over the long term when regular maintenance on items is actually carried out due to ease of access to the parts.

Good Hope 56 progress

Edwin Joy

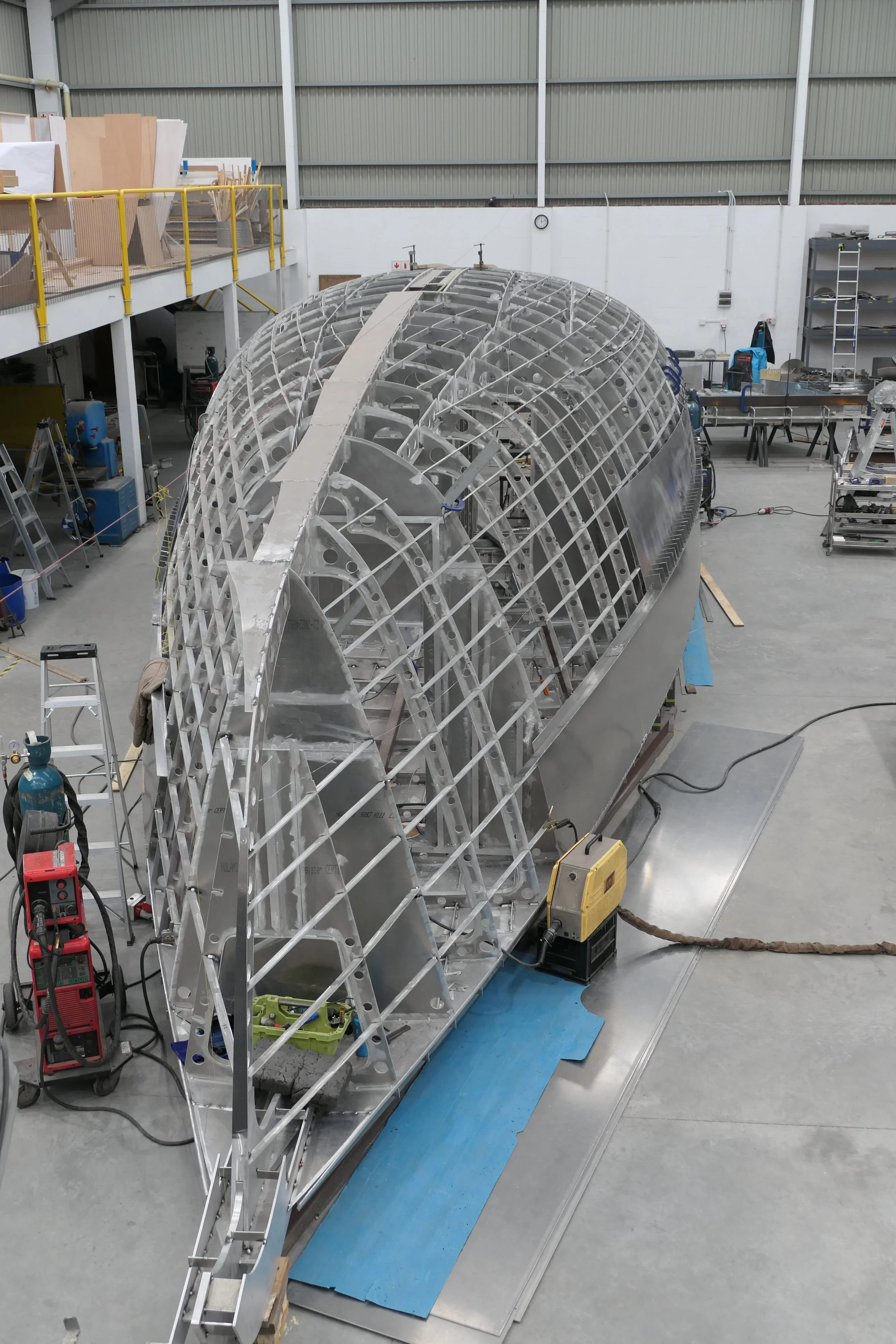

Construction of the latest Good Hope 56 is progressing well at Jacobs Brothers. For many reasons turning the hull over is an exciting milestone in the progress of the build. Work will soon begin on the systems and interior carpentry.

The hull of the latest Good Hope 56 is turned over.

The hull of the latest Good Hope 56 is turned over.

The handsome pilothouse of the Good Hope 56 takes shape.

The handsome pilothouse of the Good Hope 56 takes shape.

Gusto steering refit

Edwin Joy

The 44′ French & Webb built sloop Gusto was originally steered with a tiller. Her new owner felt that a wheel would make her easier to handle while powering in reverse and would also make moving about in the cockpit easier.

We decided to take advantage of an existing autopilot tiller arm that passed from the outboard rudder through the transom and into the lazarette. An Edson rack and pinion steerer was attached to the arm and an elegant box was built on the aft deck to house the mechanism.

The owner is delighted with the outcome. The wheel is placed so as to minimally intrude into the cockpit area. It is easily reached from the comfy helm seat (for maximum visibility) or from the cockpit (for maximum shelter from the elements.) There is excellent feel to the helm and steering is effortless in all conditions due to the fully balanced rudder.

The wheel barely pokes into the cockpit. It can be easily reached from the comfy helm seat or hunkered down on the cockpit bench.

The wheel barely pokes into the cockpit. It can be easily reached from the comfy helm seat or hunkered down on the cockpit bench.

An elegant box hides the steering mechanism and provides a base for the throttle and VHF handset. The wheel hub can decouple the wheel from the shaft so it doesn’t spin when the autopilot is steering the boat.

An elegant box hides the steering mechanism and provides a base for the throttle and VHF handset. The wheel hub can decouple the wheel from the shaft so it doesn’t spin when the autopilot is steering the boat.

The launch of TRACIE

Edwin Joy

A momentous and happy occasion occurred Saturday evening when the graceful hull of the Muscongus Bay 18 met the waters of Damariscotta Lake for the first time. Andy Payor and his lovely wife Tracie, in whose honor the boat is named, entertained their family and friends with a delicious array of hors d’oeuvres and champagne.

Hors d'oeuvres and a champagne toast

Hors d'oeuvres and a champagne toast

Bronze bow hardware. Note that the wale board is let into a recess in the carbon topsides.

Bronze bow hardware. Note that the wale board is let into a recess in the carbon topsides.

Custom tiller head designed by Andy Payor.

Custom tiller head designed by Andy Payor.

Bending on the sails. The sail is contained on the boom with a hand made Dutchman type system. 2mm Spectra lines are seized to the topping lift, woven through grommets in the sail, and terminated to bronze eye straps on the top of the boom.

Bending on the sails. The sail is contained on the boom with a hand made Dutchman type system. 2mm Spectra lines are seized to the topping lift, woven through grommets in the sail, and terminated to bronze eye straps on the top of the boom.

First sail

First sail

Lovely transom

Lovely transom

First sail a success

First sail a success

Congratulations Team TeMana

Edwin Joy

Annie Lannigan and the crew of the Paine designed and Kanter built TeMana celebrate a second place finish in the cruising division of the first annual Penobscot Bay Rendevous.

The event was a complete success with great racing and boisterous parties, setting a high mark for subsequent events to exceed. Can’t wait till next year.

Billy Black photo

Billy Black photo

Gusto under sail

Edwin Joy

Gusto charges for the finish line on a perfect day at the Eggemoggin Reach Regatta. The ERR is the premiere wooden boat regatta on the United States east coast. The mixture of beautiful boats, spectacular Maine scenery and friendly competition makes for an event that is not to be missed by an enthusiast of any of the three.

Billy Black photo

Billy Black photo

Muscongus Bay 18 progress

Edwin Joy

The Muscongus Bay 18 is now at French & Webb for final finishing and installation of her exterior joinerwork. The deck has been attached and covered with Dynel and the ballast has been fitted to the keel stub. Andy will get to enjoy her for a good part of this summer.

Graceful even in her unfinished state.

Graceful even in her unfinished state.

The varnished wale and transom will be skillfully set into recesses in the hull for a flush appearance similar to a wooden boat.

The varnished wale and transom will be skillfully set into recesses in the hull for a flush appearance similar to a wooden boat.

A very comfortable cockpit. The interior woodwork (under protective cover) was completed at Englishman Marine.

A very comfortable cockpit. The interior woodwork (under protective cover) was completed at Englishman Marine.

Rockport Marine launch day

Edwin Joy

On this misty May afternoon, Rockport Marine launched the fully restored Alden motorsailer Trade Wind. The world is a better place with such beautiful craft filling its harbors. Well done.

Ready to get wet (from the bottom as well)

Ready to get wet (from the bottom as well)

Truly beautiful....

Truly beautiful....

...from any angle

...from any angle

A classic yacht needs a classic tender.

A classic yacht needs a classic tender.

The EVA has landed

Edwin Joy

Family and friends gather to watch the delivery of EVA to her owners' back yard.

Family and friends gather to watch the delivery of EVA to her owners' back yard.

EVA arrives at her new home after an uneventful trip from the Jacobs Brothers facility. Now the real fun can begin. The first job will be to install 65mm of polyethylene sheet insulation over the entire deck and hull above the waterline.
Next inside will be the plywood cabin sole, followed by wiring and plumbing, interior components and liners. Windows, portlights, and deck hardware remain to be installed topside.

Silver Streak

Edwin Joy

Metalwork complete, EVA travels down the road toward the site where her owners will turn her from a metal shell into a fully fitted yacht.

EVA flies down the road

EVA flies down the road

Daddy, when can we go sailing?

Edwin Joy

Noah surveys his future home. His hand is resting on the keel trunk. Directly behind him will be the galley. His bedroom is forward behind the bulkhead in the background.

Noah surveys his future home. His hand is resting on the keel trunk. Directly behind him will be the galley. His bedroom is forward behind the bulkhead in the background.

EVA’s metal shell is nearing completion and will soon have a home on a hardstand at her owners’ property where the final fitout will begin. Having installed all the systems themselves, they will have an intimate knowledge of the EVA’s inner workings. Boatbuilding skills are an invaluable asset for a cruising family and Noah is at the perfect age to begin acquiring them at the feet of his father and grandfather (under Mum’s watchful eye, of course.)
